Worksheet Columns

For many of the analyses that use a worksheet (including FMEAs, PFD worksheets, DVP&Rs and DRBFMs), the Worksheet Columns page of the interface style allows you to specify the order in which the property columns will be displayed. These preferences will be saved with the project so the column order will be the same for all users who view the analysis.

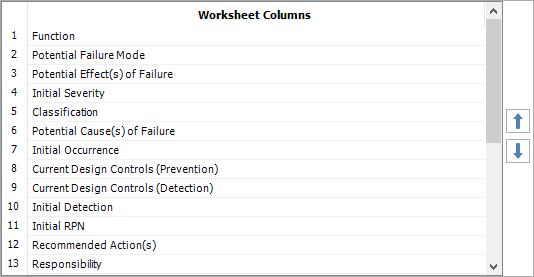

The table shows all of the properties for that type of analysis that are currently enabled in the interface style (using the display name that has been specified in the record properties table(s)). You can use the arrows to move a selected property up or down in the list.



You can use the options on the Actions page of the Database Settings window to hide the planned and actual start and completion dates from the FMEA worksheet view. The columns will still be shown on this page if they are enabled in the interface style, even if they are hidden from the actual worksheet view.
