Customize the Column Headers

After you have specified the query criteria in the Query window, you can use the Headers Customization tab to determine how the selected properties will be displayed in the query results.

Use the up and down arrows to set the desired column order.



There are four options for the column width:

• Fit the label in the column heading
• Fit the widest label in the column data
• Fit the widest label in either the heading or data
• Use a fixed width (as specified in the User-Defined Column Width (Characters) column)

By default, the column headings will use the names shown in the Property Name column. You can overwrite that by entering text in the Overwrite Default Heading Text column.

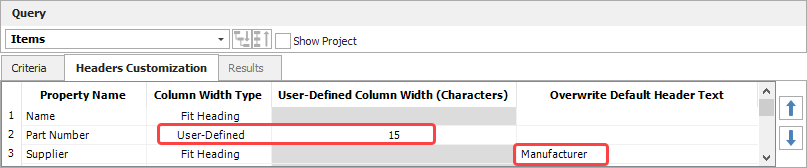

For example, the following picture shows a query where the Part Number column will be exactly 15 characters wide while the Name and Supplier columns will be as wide as the heading text. In addition, the heading of the Supplier column will be displayed as "Manufacturer."
