EQSYSTEM

For reliability growth data analysis only.

Description: Allows you to manually build a table that shows the failure times on the timeline of the equivalent system. This applies to developmental multiple systems data types only.

Syntax: EQSYSTEM(Data_Src, Row, Column)

• Data_Src is the source data sheet from which the information is taken.

• Depending on the data type and model you are working with, the Row and Column parameters will return the following information:
  • For the Multiple Systems - Known Operating Times data type:
    • Row corresponds to the row number in the data sheet of the selected folio.
    • Column is an index value (from 1 to 4) that returns the following information:
      • 1 = returns the system ID.
      • 2 = returns the failure time.
      • 3 = returns the mode classification (for the Crow Extended model only).
      • 4 = returns the failure mode (for the Crow Extended model only).
  • For the Multiple Systems - Concurrent Operating Times and Multiple Systems with Event Codes data types:
    • Row corresponds to the order of the data points on the timeline of the equivalent system, as shown in its System Operation plot (i.e., row 1 = 1st failure, row 2 = 2nd failure, etc).
    • Column is an index value (from 1 to 4) that returns the following information:
    • 1 = returns the number that is specified in Row.
    • 2 = returns the failure time.
    • 3 = returns the mode classification (for the Crow Extended model only).
    • 4 = returns the failure mode (for the Crow Extended model only).
  • For the Multiple Systems with Dates data type:
    • Row corresponds to the order of the data points on the timeline of the equivalent system, as shown in its System Operation plot (i.e., row 1 = 1st failure, row 2 = 2nd failure, etc).
    • Column is an index value (from 1 to 5) that returns the following information:
    • 1 = returns the number that is specified in Row.
    • 2 = returns the failure time.
    • 3 = returns the date of failure.
    • 4 = returns the mode classification (for the Crow Extended model only).
    • 5 = returns the failure mode (for the Crow Extended model only).

Remarks:

• The Data_Src can be one of the following values:

  • A default data source selected from the Data Source Index drop-down list.

  • A data sheet name (e.g., "Weibull!Folio1!Data1").

  • A variable name defined in the Defined Names window (e.g., datasource).

• The Row and Column values must be greater than 0.

Example:

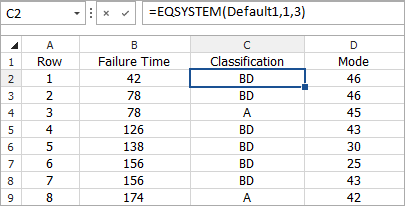

The following table is for a particular data set entered in a Multiple Systems - Concurrent Operating Times data sheet and analyzed with the Crow Extended model. It shows the failures on the timeline of the equivalent system (i.e., row 1 = 1st failure, row 2 = 2nd failure, etc), and the classification and mode that each failure is associated with.

Note that the values depend on the source data set.
