BlockSim Analytical Fault Tree and RBD Plot Examples

Let's assume that the three components A, B and C follow failure distributions Weibull(Beta=1.5,Eta=1000), Weibull(Beta=1.1, Eta=800) and Exponential(MTTF=3000). The reliability for each components and the system at mission time =100 hours is shown in the figure below.

There are several plots available for analytical RBD and fault tree analysis.

At the system level, there are four plots available as shown in the following:

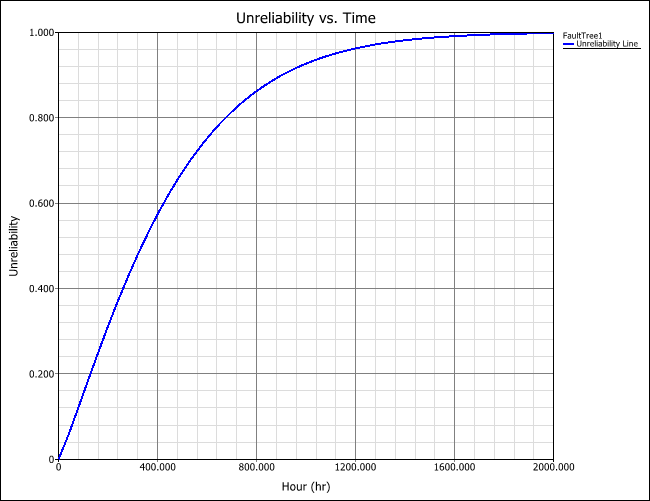

Unreliability vs. Time

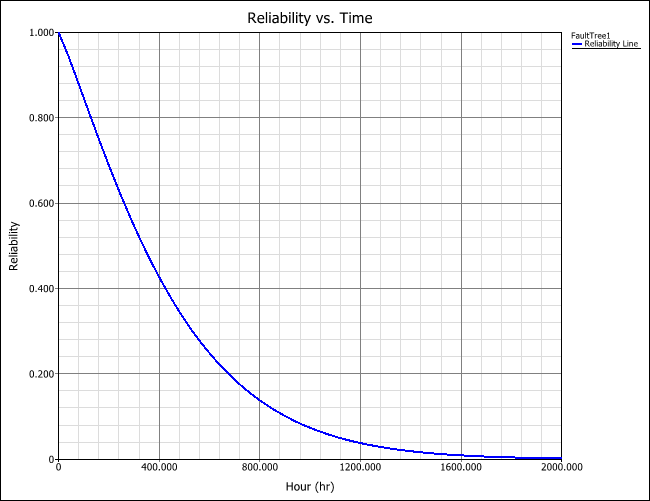

Reliability vs. Time

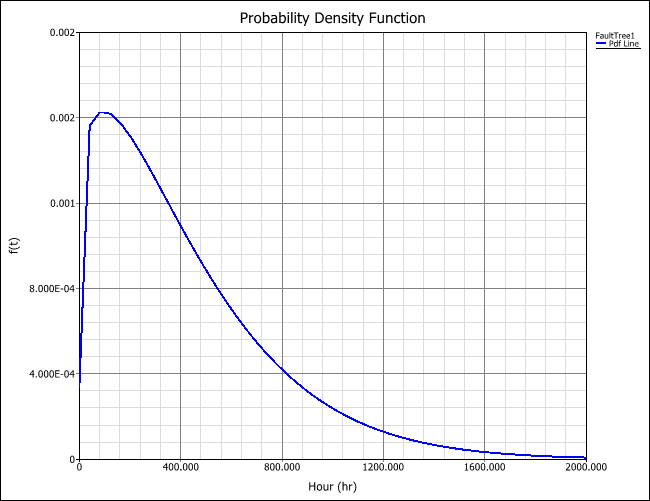

Probability Density Function

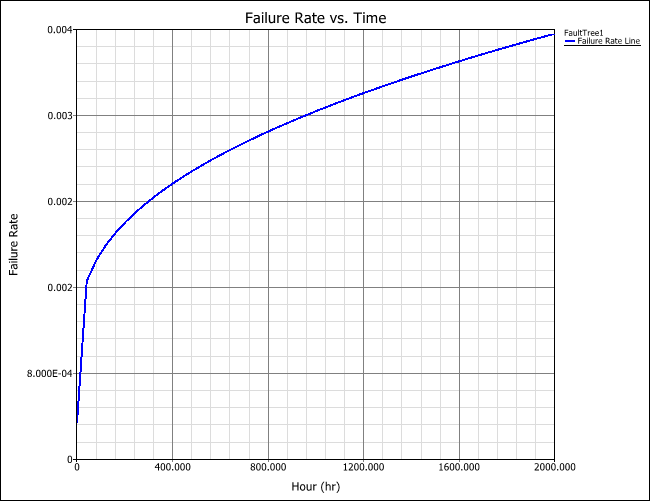

Failure Rate vs. Time

For the metrics, three kinds of reliability importance plots are available:

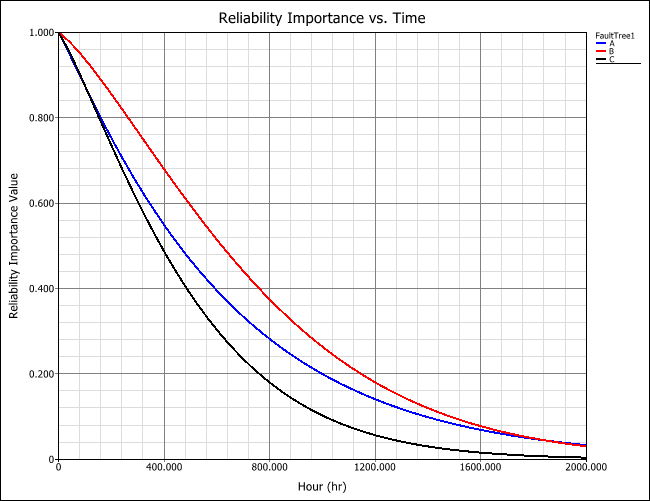

Reliability Importance vs. Time

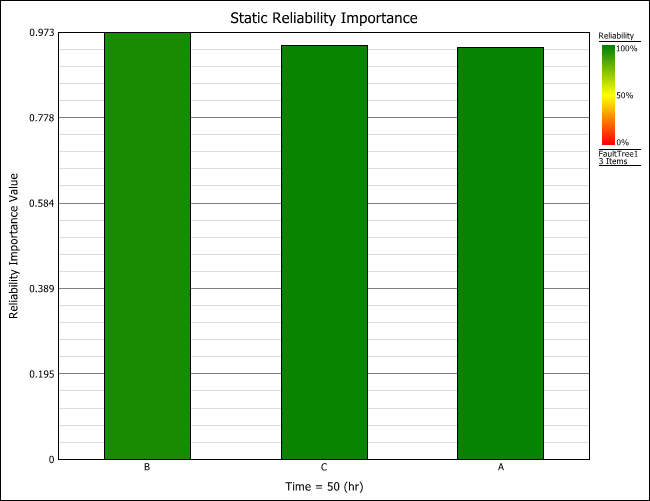

Static Reliability Importance

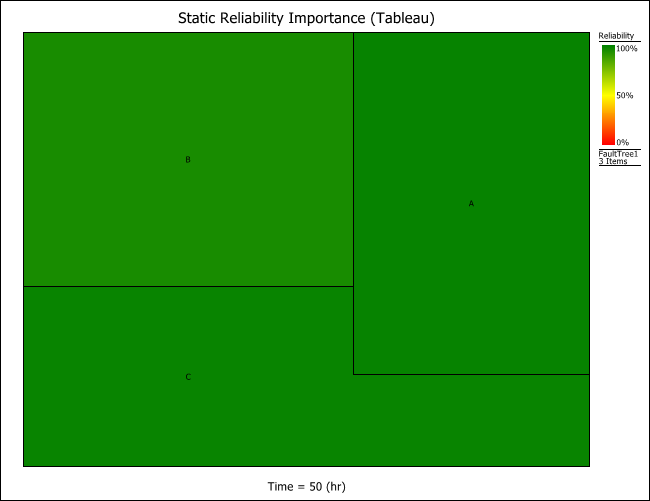

Static Reliability Importance (Tableau)

At the block level, four kinds of plots are available:

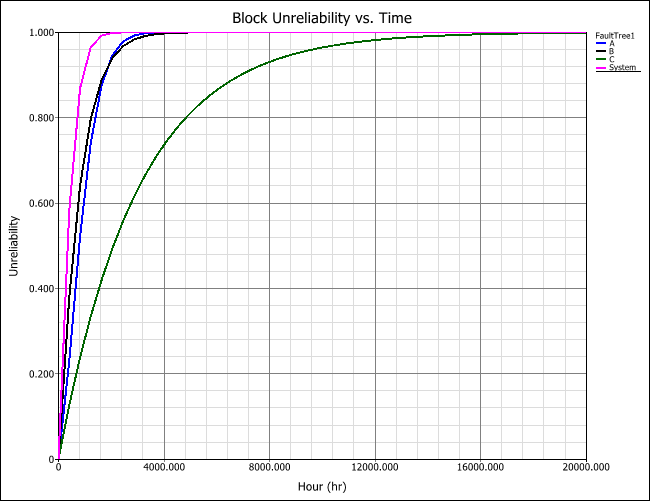

Block Unreliability vs. Time

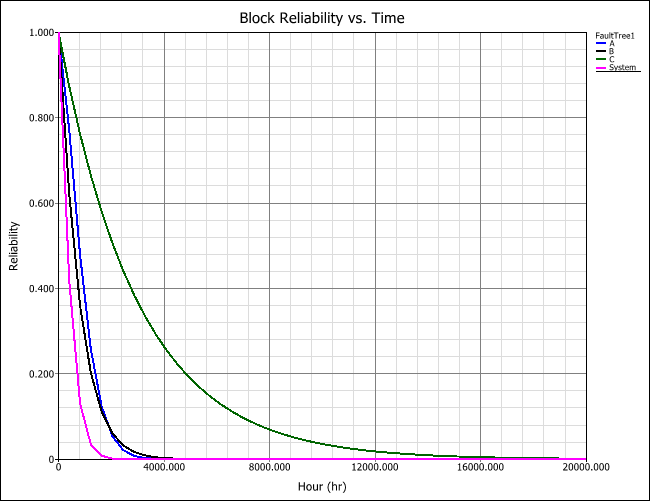

Block Reliability vs. Time

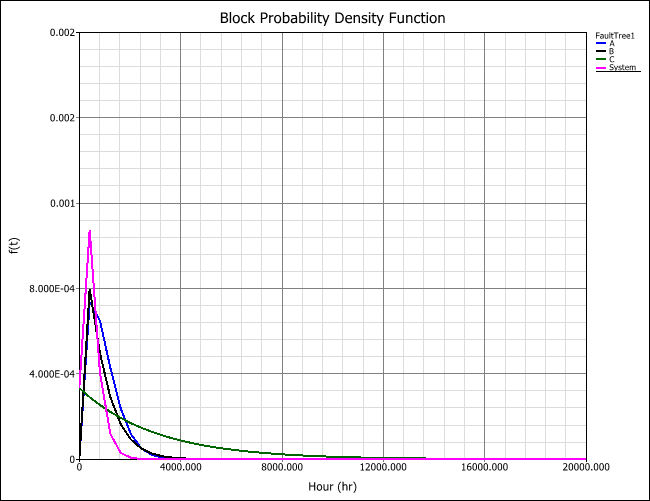

Block Probability Density Function

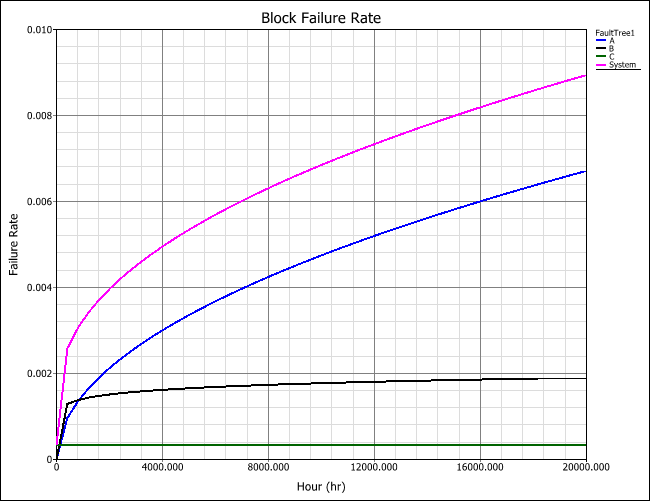

Block Failure Rate
